TC13

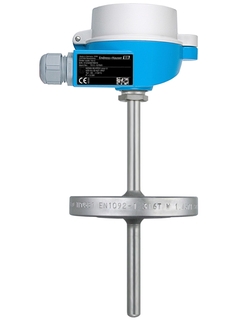

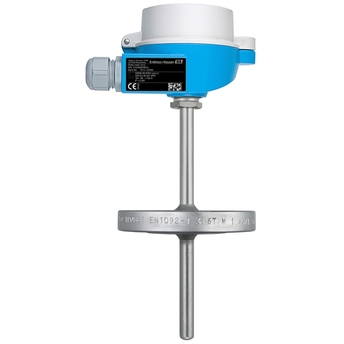

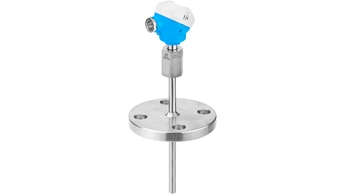

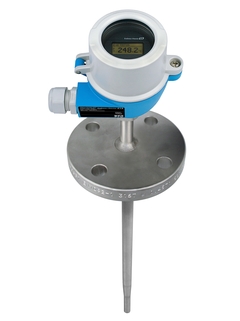

Termometro a termocoppia, design modulare

Tecnologia di misura completa e comune della temperatura per quasi tutti i settori industriali ©Endress+Hauser
Tecnologia di misura completa e comune della temperatura per quasi tutti i settori industriali ©Endress+Hauser
Tecnologia di misura completa e comune della temperatura per quasi tutti i settori industriali ©Endress+Hauser

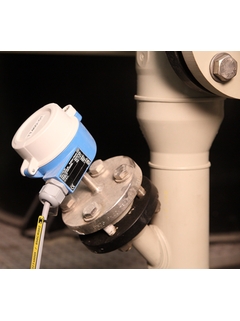

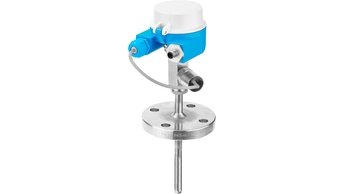

Termometro TC, protetto contro le esplosioni con pozzetto termometrico e diverse flange disponibili

Robusto termometro modulare applicabile in quasi tutti i settori. Un trasmettitore da testa opzionale, dotato di tutti i più comuni protocolli di comunicazione, rende il dispositivo pronto per l'uso con una maggiore precisione e affidabilità di misura rispetto ai sensori a cavo fisso. Una varietà di connessioni al processo, dimensioni e materiali offrono flessibile possibilità di applicazione.

Selezione rapida

Scegli tra le opzioni suggerite
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

o

Configurazione individuale

Continua la selezione tra tutte le opzioni possibili
  • Vantaggi

    • Elevato grado di flessibilità grazie al design modulare con teste terminali standard, secondo DIN EN 50446 e lunghezze di immersione specifiche del cliente

    • Elevato grado di compatibilità dell'inserto e design secondo DIN 43772

    • Collo di estensione per...

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Termocoppia

  • Caratteristica / Applicazione

    stile metrico

    dispositivo di temperatura modulare

    campo applicativo universale

    idoneità per aree pericolose

    connessione al processo flangiata

    senza collo

    pozzetto/tubo di protezione (metallo) compreso

  • Pozzetto termometrico

    tubo di protezione saldato

  • Ingresso / Sonda

    isolamento minerale (MI), flessibile

  • Diametro esterno tubo di protezione/Inserto

    9,0 mm (0,35'')

    11,0 mm (0,43'')

    12,0 mm (0,47'')

  • Lunghezza su richiesta (mm)

    fino a 10.000,00 mm (393,70'')

  • Materiale tubo di protezione/pozzetto

    1.4404 (316L)

    1.4571 (316Ti)

    Alloy 600 (2.4816)

    Alloy C276 (2.4819)

  • Rivestimento opzionale

    Non definito

  • Attacco al processo

    flangia:

    DN25 PN40 B1 (EN1092)

    DN40 PN40 B1(EN1092)

    DN50 PN40 B1 (EN1092)

    ASME 1" 150 RF (B16.5)

    ASME 1" 300 RF (B16.5)

  • Forma della punta

    rettilineo

    ridotto

    rastremato

  • Rugosità della superficie Ra

    0,8 µm (31,5 µin.)

  • Range di misura / operatività

    Tipo K:

    -40 … 1100 °C

    (-40 … 2012 °F)

    Tipo J:

    -40 … 750 °C

    (-40 … 1382 °F)

  • Max pressione di processo a 20°C

    a 20 °C: 50 bar (725 psi)

  • Precisione

    classe 1 secondo IEC 60584

  • Miglior tempo di risposta

    dipende dalla configurazione

    t50 = 6 s

    t90 = 13 s

  • Trasmettitore da testa

    sì (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Approvazioni Ex

    ATEX II

    ATEX IECEx

    NEPSI

    IECEx Ex

  • Certificazione

    Metrologia Gost

    SIL (solo trasmettitore)

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
  • C
  • A
  • E
  • B
    • Nr B Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

  • D
    • Nr D Order code TA20A-

      Terminal Head TA20A

      Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

    • Nr D Order code TA20B-

      Terminal Head TA20B

      "Product being phased out, limited availability." Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black. Ambient temperature: max. +80 oC. Protection: IP65.

    • Nr D Order code TA20D-

      Terminal head TA20D

      Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66

    • Nr D Order code TA20R-

      Terminal Head TA20R

      Product being phased out, limited availability. Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: AISI316L/1.4404. max temperature 100oC, ATEX: +95oC. Protection class IP66/IP67.

    • Nr D Order code TA20W-

      Terminal head TA20W

      Product being phased out, limited availability. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66

    • Nr D Order code TA21E-

      Terminal Head TA21E

      Retainer for terminal block or head transmitter. Cover: srewable. Material: aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65.

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

  • D
    • Nr D Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30D-

      Terminal Head TA30D

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30P-

      Terminal Head TA30P

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: Polyamid PA12 antistatic. Colour: black. Ambient temp.: -40...120oC (housing). Protection: IP65 (housing).

  • B
    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

  • B
    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

  • Successore
