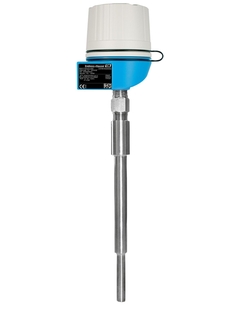

Product picture RTD-Assembly T13

T13
Explosion proof Pt100 thermometer, US style

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

T13
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751
    class B acc. to IEC 60751

  • Response time

    depending on configuration
    63% rt = 20 s

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)
    depends on configuration

  • Operating temperature range

    PT100 WW:
    -200 °C … 600 °C
    (-328 °F … 1.112 °F)
    PT100 TF:
    -50 °C … 200 °C
    (-58 °F … 392 °F)

  • Max. immersion length on request

    up to 22.5" (571 mm)
    others on request

Field of application

The robust device with a barstock thermowell is a complete unit ready for use with various housing transmitter heads to meet the application and space requirements. The unit offers enhanced measurement accuracy and reliability. A variety of process connections, dimensions, and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.

The T13 temperature sensor is a RTD assembly installed in thermowell and designed for use in harsh environments and explosive areas, due to his FM and CSA approvals.
The sensor is made up of a measurement probe with an insulated RTD element, sheath and a thermowell made of bar-stock material.


The sensor assembly can be used in process industries such as:

  • Chemicals

  • Petrochemical

  • Refineries

  • Offshore Platforms

Benefits

  • FM/CSA XP Class I, Div. 1 approved temperature assemblies for maximum safety

  • One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications

  • Remove and install straight out of the box!

  • Improved galvanic isolation on most devices (2 kV)

  • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor, thermowell and transmitter assembly for a complete point solution

  • All iTEMP transmitters provide long term stability ≤0.05% per year
