Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2
Response time
t90 starting at < 1,5 s iTHERM QuickSens depending on configuration
Max. process pressure (static)
depending on the configuration
Operating temperature range
PT100 TF iTHERM StrongSens: -50 °C ...500 °C (-58 °F ...932 °F) PT100 TF iTHERM QuickSens: -50 °C …200 °C (-58 °F …392 °F) PT100 WW: -200 °C ...600 °C (-328 °F ...1.112 °F) PT100 basic TF: -50 °C ...200 °C (-58 °F ...392 °F) Typ K: max. 1.100 °C (max. 2.012 °F) Typ J: max. 800 °C (max. 1.472 °F) Typ N: max. 1.100 °C (max. 2.012 °F)

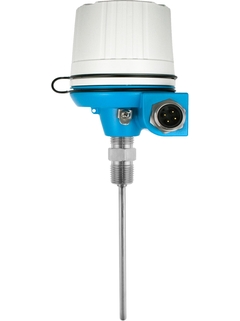

iTHERM ModuLine TM112 is a modular imperial RTD or TC thermometer with direct contact (without thermowell). It is suitable for every application, from basic functionality to high-end performance across all industries.
For universal use across all industries: From heavy industries (Power & Energy, Chemical, Oil & Gas) to utility applications.
International certification: e.g. explosion protection according to ATEX, IECEx, CSA C/US and NEPSI.
iTEMP temperature transmitter with all common communication protocols and optional Bluetooth® connectivity.
Benefits
Modular configuration for all applications: A wide selection of components and innovations, all combined under a single order code.
Increased efficiency: Fastest response times with iTHERM QuickSens sensor design.
Enhanced safety: Reliability in demanding applications with iTHERM StrongSens and highest vibration-resistance.
Torishima designs and builds large cooling water systems for customers in the Middle East, relying on Endress+Hauser instrumentation for the quality and performance of the products.
By integrating a thermometer with iTHERM TwistWell thermowell with advanced helical design, operators can achieve superior steam quality and significantly reduce vortex-induced vibrations.
Ensure data center uptime and reduce energy costs by using precise temperature devices with robust 3- or 4-wire RTDs and smart temperature transmitters in liquid cooling applications.
Explore iTHERM ModuLine industrial thermometers and thermowells. Learn more about the technical differences between the different models and discover included Endress+Hauser innovations.
iTHERM ModuLine offers full flexibility for industrial temperature measurement. The modular industrial thermometers can be configured individually to meet your process requirements.
imperial style universal range of application suitable for hazardous areas can be used with iTHERM StrongSens, iTHERM QuickSens direct process contact
Thermowell / protection tube
without, direct process contact
Insert / probe
mineral insulated (MI), flexible
Outer diameter protection tube / Insert
Insert: 1/8" 1/4" 3/8" 3/8" reduziert auf 3/16" 3,0 mm 6,0 mm
Max. immersion length on request
up to 180"
Material protection tube/ thermowell
Insert Material: 316L (1.4404) Alloy 600 (2.4816)
Process connection
Thread: NPT1/2", NPT3/4" Compression fitting, also spring load: NPT1/4", NPT1/2"
Tip shape
straight stepped
Surface roughness Ra
0,76 μm (30 μin.) 1,6 μm (63,0 μin.)
Operating temperature range
PT100 TF iTHERM StrongSens: -50 °C ...500 °C (-58 °F ...932 °F) PT100 TF iTHERM QuickSens: -50 °C …200 °C (-58 °F …392 °F) PT100 WW: -200 °C ...600 °C (-328 °F ...1.112 °F) PT100 basic TF: -50 °C ...200 °C (-58 °F ...392 °F) Typ K: max. 1.100 °C (max. 2.012 °F) Typ J: max. 800 °C (max. 1.472 °F) Typ N: max. 1.100 °C (max. 2.012 °F)
Max. process pressure (static)
depending on the configuration
Accuracy
Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2
Response time
t90 starting at < 1,5 s iTHERM QuickSens depending on configuration
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals
ATEX Ex ec ATEX IECEx Ex ia CSA C/US IS, NI, XP, DIP INMETRO Ex ia
