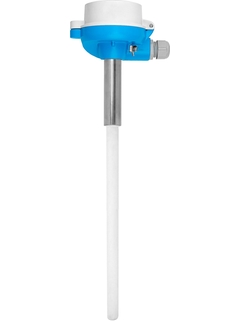

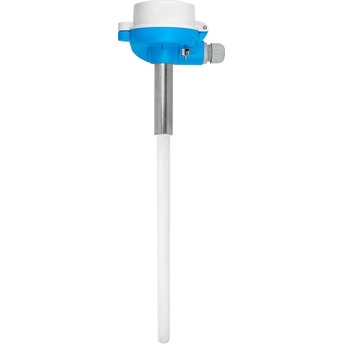

Product picture thermocouple thermometer TAF11

TAF11
High temperature TC thermometer

Applicable for steel treatment (annealing), concrete furnaces and primaries

TAF11
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Accuracy

    class 2 acc. to IEC 60584

  • Max. process pressure (static)

    at 20 °C: 1 bar (15 psi)

  • Operating temperature range

    Type K:
    -40 C ...1.300 C
    (-40 F ...2.372 F)
    Type J:
    -40 C ...750 C
    (-40 F ...1.382 F)
    Type N:
    -40 C ...1.150 C
    (-40 F ...2102 F)
    Type S:
    0 C ...1.600 C
    (32 F ...2.912 F)
    Type R:
    0 C ...1.600 C
    (32 F ...2.912 F)
    Type B:
    600 C ...1.600 C
    (1.112 F ...2.912 F)

  • Max. immersion length on request

    up to 4.000,00 mm (157,48'')

Field of application

Measuring points with extremely high process temperatures require these special thermometers with ceramic thermowells and thermocouples made from special metals, such as platinum and rhodium. The thermowell made from special materials serves as protection from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.

  • Applicable for steel treatment (annealing), concrete furnaces and primaries. It contains a single or double TC insert and a ceramic protection tube.

  • Process temperatures: up to +1600 °C (+2912 °F)

Benefits

  • Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance

  • Long term stable measurement due to sensor protection with non-porous materials

  • Flexible product selection by modular design

  • Optimized life cycle costs by means of replaceable spare parts
