Specs at a glance
-
Process temperature
max. 45°C
-
Process pressure
max. 4bar
Field of application

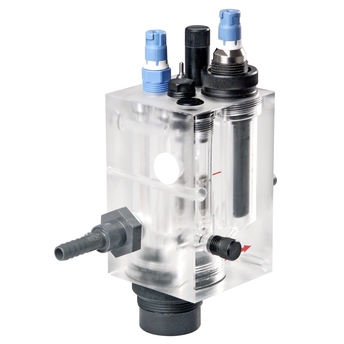

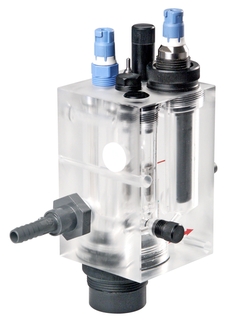

The Flowfit CCA250 flow assembly is specially designed to accommodate all sensors needed for accurate disinfection control - the chlorine sensor and the pH/ORP sensors for compensation and measurement. It increases the availability of sensors and offers an integrated flow alarm and adjustment to make sure that your bypass measurement is always operational. With CCA250, you have complete control of your disinfection processes and the water is always free of germs.
CCA250 is a flow assembly for the measurement of free chlorine, total chlorine and chlorine dioxide in:
Drinking water
- Trace and standard measurement in process water and distribution networks
- Monitoring, control and optimization of disinfection processesUtilities of all industries
- Trace and standard measurement in all disinfection applications
- Process applications, e.g. bottle rinsing machinesPool water
Benefits
All sensors needed for disinfection measurement comfortably in one place
Suitable for all disinfection processes - free chlorine, chlorine dioxide, total chlorine and others
Cap screwed from below allows calibration of the pH and ORP sensors without sensor removal
Flow alarm can be activated
Needle valve to adjust the flow and flow meter for optical control
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
Technical Information CCA 250
Flow assembly for chlorine and pH/ORP sensors
EN 01/08/200901/03/200701/06/2001Language:
English
Version:
01/08/2009
File size:
520.4 KB
File name:
TI062CEN_0709.pdf
-
-
-
Operating Instruction (BA)
Operating Instructions CCA250
Flow Assembly for Chlorine Measurement
EN 01/07/200901/02/200701/03/199401/07/1993Language:
English
Version:
01/07/2009
File size:
535.9 KB
File name:
BA062CEN_0709.pdf
-
-
-
