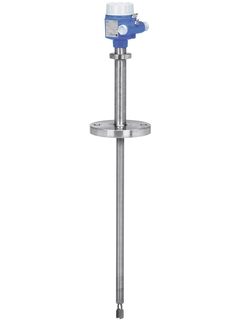

Name: Liquiphant S FTL71
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Predecessor

CS5603
CS5613

Rod probe 11500ZM
Rod probe 11500Z

Successor

F

L

E

X
Liquiphant FTL64

A level switch for hot and pumpable liquids
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Vibration Liquids
Characteristic / Application

Modular housing concept
High process temperatures up to 280°C
wide range of process connections
Analogue and bus interfaces
Extensive certificate range (e.g. Ex,WHG)
compact, e.g. pipes
Dual Sealing / Second line of defense
Specialities

Foam detection
Detect a density change
second line of defense
Supply / Communication

PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC bzw 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Ambient temperature

-50 °C...+70 °C
(-58 °F...+158 °F)
Process temperature

-60 °C...+280 °C
(-76 °F...+540 °F)
(300°C / 572°F, 50h cumulated)
Process pressure / max. overpressure limit

Vacuum...100 bar
(Vacuum...1450 bar)
Min. density of medium

0.5g/cm³ (0.4g/cm³ optional)
Main wetted parts

316L / Alloy
PFA and Enamel on request
Process connection

Thread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
Flange:
DIN DN25...DN100,
ASME 1"...4",
JIS 25A...100A
Sensor length

Length 130mm (5.12") (Liquiphant II)
148mm...3000mm / 6000mm optional
(5.83"...118" / 236" optional)
Communication

PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC bzw 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Certificates / Approvals

ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI
Safety approvals

SIL
Design approvals

EN 10204-3.1
NACE MR0175, MR0103
ASME B31.3
AD2000
Marine approval

GL/ ABS
Options

Heavy duty stainless steel housing mainly for the oil and gas industry
Components

FTL325P/FTL375P Interface PFM
FTL325N/FTL375N Interface NAMUR
