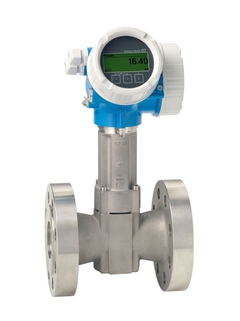

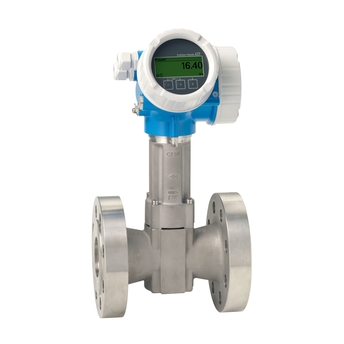

Proline Prowirl O 200 / 7O2B

Vortex

The flowmeter with a high pressure sensor, available as compact or remote version.
Integrated temperature measurement up to PN 160 (Class 600).
The specialist for applications with very high process pressure.

Highest mechanical integrity for flow measurement – special measuring tube material. High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer. No maintenance – lifetime calibration.
Process pressure up to PN 250 (Class 1500). DSC sensor made of Titanium (PN > 160 bar/Cl.600). Face-to-face length according to industry standard.

Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
Display module with data transfer function. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

DN 15 to 150 (½ to 6")

Measuring tube: 1.4408 (CF3M); 1.4571 similar to 316Ti DSC sensor: UNS N07718 similar to Alloy 718, 2.4668; Titanium grade 5 similar to 3.7165
Connection: 1.4408 (CF3M); 1.4571 similar to F316 Ti; F316/F316L similar to
1.4404

Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature

Volume flow (liquid): ±0.75 %
Volume flow (steam, gas): ±1.00 %
Mass flow (liquid): ±0.85%
Mass flow (steam, gas): ±1.7 %

Liquid: 0.16 to 545 m³/h (0.09 to 321 ft³/min)
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 2 to 7262 m³/h (1.18 to 4274 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air
with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)

PN 250, Class 1500, 40K

PN 63 to 160, Class 600: –200 to +400 °C (–328 to +752 °F)
PN 250, Class 900 to 1 500: –50 to +400 °C (–58 to +752 °F)

Compact version (standard): –40 to +80 °C (–40 to +176 °F)
Compact version (option): –50 to +80 °C (–58 to +176 °F)
Remote version (standard): –40 to +85 °C (–40 to +185 °F)
Remote version (option): –50 to +85 °C (–58 to +185 °F)

Sensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M)

AlSi10Mg, coated; 1.4404 (316L)

Compact version: IP66/67, type 4X enclosure
Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, type 4X enclosure

4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available

4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)

4‐20 mA (passive)

HART, PROFIBUS PA, FOUNDATION Fieldbus

DC 12 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output)
DC 12 to 30 V (4‐20 mA HART, 4‐20 mA)
DC 12 to 35 V (4‐20 mA HART, pulse/frequency/switch output, 4‐20 mA input)
DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output)

ATEX, IECEx, cCSAus, EAC

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR,
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

PED, CRN, AD 2000

3.1 material
NACE MR0175/MR0103, PMI (on request); only Class 900/1500: welding test acc. to ISO 15614‐1, similar to ASME IX (on request)
