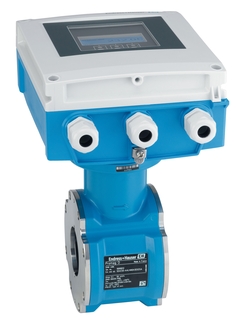

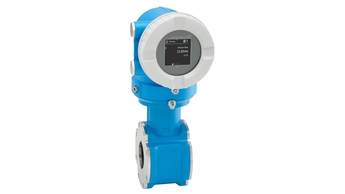

Proline Promag D 400 / 5D4C

std_productprofile_product_usp_8041.
For basic water applications, optimized for limited space and plastic pipe installations.

Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
std_productprofile_product_differentiating_tech_features_6675. std_productprofile_product_differentiating_tech_features_6676. std_productprofile_product_differentiating_tech_features_6677.

Safe operation – no need to open the device due to display with touch control, background lighting. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Transmitter housing made of durable polycarbonate or aluminium. WLAN access. Integrated data logger: measured values monitoring.

DN 25...100
1"...4"

Liner: Polyamide
Electrodes: 1.4435 (316L)

Volume flow, mass flow

Volume flow: ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

9 to 4700 dm³/min (2.5 to 1250 gal/min)

PN 16, Class 150, 10K

0 to +60 °C (+32 to +140 °F)

–20 to +60 °C (–4 to +140 °F)

AlSi10Mg, coated
Sensor connection housing: AlSi10Mg, coated

Polycarbonat; AlSi10Mg, coated

Compact version: IP66/67, type 4X enclosure
Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, Type 4X enclosure

4‐line backlit display with touch control (operation from outside)
Configuration via local display, web browser and operating tools possible

3 ouputs:
0‐20 mA/4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Pulse/frequency output (passive)
Switch output (passive)

Status input

HART, PROFIBUS DP, EtherNet/IP, Modbus RS485

AC 100 to 240 V / AC/DC 24 V

cCSAus

CE, C-tick, EAC marking

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

CRN

ACS, KTW-BWGL, NSF 61, WRAS BS 6920
