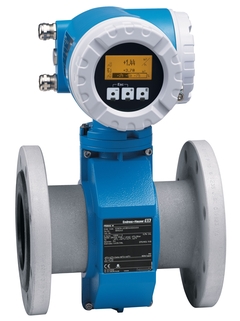

Proline Promag 53W Proline Promag 53W

Promag 53W

53W

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Overview Specifications Downloads Spare parts & accessories

Show all products: Flow Electromagnetic

Download as PDF
Share
- Copy Link
- Send Mail

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Predecessor

Successor

F

L

E

X
Proline Promag W 400 / 5W4C

Versatile standard flowmeter for the water and wastewater industry
