Proline Prosonic Flow
P 500 Ultrasonic flowmeter

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 / 9P5B - DN 80 to 4000 (3 to 156") ©Endress+Hauser

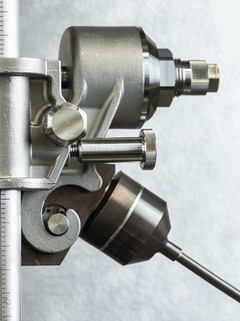

Proline Prosonic Flow P 500 – Ultrasonic clamp-on flow measurement for consistently high performance even in confined spaces

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 / 9P5B - DN 15 to 65 (½ to 2½") ©Endress+Hauser

Proline Prosonic Flow P 500 for pipes with line sizes DN 15 to 65 (½ to 2½")

Prosonic Flow P 500 with FlowDC function

The Ultrasonic Flow Measuring Principle

Clamp-on flowmeter for limited spaces in process industries with up to 3 I/Os

The proven sensor Prosonic Flow P can be installed close to elbows, expansions or constrictions in the pipe and still maintain the same measurement accuracy. Even measurement of abrasive, corrosive or toxic fluids is no problem for the non-invasive clamp-on device. Prosonic Flow P 500 is mounted without process interruption or opening the pipe. Heartbeat Technology not only ensures measurement reliability and compliant verification but also helps to find the optimal mounting position.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

This product is not available in this market.

  • Specs at a glance

    • Max. measurement error

      Volume flow:
      ±3% o.r. for DN15
      ±2% o.r. for DN25 to DN200
      ±2% o.r. above DN200

    • Measuring range

      0 to 15 m/s (0 to 50 ft/s)

    • Medium temperature range

      DN15 to 65 (½to 2½"): -40 to +150°C (-40 +302 °F)
      DN50 to 4000 (2…160"): -40 to +170°C (-40 +338 °F)

    • Max. process pressure

      N/A

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Constant accuracy even when mounted with short inlet run thanks to FlowDC

    • High safety standards – SIL by design, international hazardous area approvals

    • Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads

    • ...

  • Field of application

    • The measuring principle is non-invasive and independent of pressure, density and conductivity

    • Bidirectional measurement of various fluids, e.g. liquid hydrocarbons and chemicals

    Device properties:

    • Mounting without process interruption

    • Wide nominal...

Features and specifications

Back

Details

  • Measuring principle

    Ultrasonic flow

  • Product headline

    Flowmeter for hazardous area installations with a wide range of analog and digital outputs.
    Automatic frequency scan for maximum measuring performance.
    Ideal clamp-on device for applications with chemicals, solvents, liquid hydrocarbons, acids, alkalis.

  • Sensor features

    Increased safety for chemical and petrochemical industry – international hazardous area approvals. Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Process transparency – diagnostic capability.
    Medium temperature: –40 to 170 °C (–40 to 338 °F). Wide nominal diameter range: DN 15 to 4000 (½ to 160"). Process piping unaffected by meter installation.

  • Transmitter features

    Highest performance – extended functionality and diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing.
    Aluminium transmitter housing. 4‐line backlit display with touch control. HART, PROFIBUS PA/DP, FOUNDATION Fieldbus.

  • Nominal diameter range

    Dual channel, 1 or 2 paths : DN15 to 4000 (1/2 to 160")

  • Sensor materials

    Clamp on system:
    Sensor holder 1.4301/304, 1.4404/316L
    Sensor housing 1.4301/304, 1.4404/316L
    Strapping bands 1.4301/304, 1.4404/316L

  • Measured variables

    Volume flow, sound velocity, flow velocity, totalizer

  • Max. measurement error

    Volume flow:
    ±3% o.r. for DN15
    ±2% o.r. for DN25 to DN200
    ±2% o.r. above DN200

  • Measuring range

    0 to 15 m/s (0 to 50 ft/s)

  • Max. process pressure

    N/A

  • Medium temperature range

    DN15 to 65 (½to 2½"): -40 to +150°C (-40 +302 °F)

    DN50 to 4000 (2…160"): -40 to +170°C (-40 +338 °F)

  • Ambient temperature range

    -40 to +60 °C (-40 to +140 °F)
    -50 to +60 °C (-58 to +140 °F) optional

  • Sensor housing material

    N/A

  • Transmitter housing material

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L

  • Degree of protection

    Sensor remote version: IP68 type 6P
    Transmitter remote version: IP66/67, Type 4X enclosure

  • Display/Operation

    4-line backlit display with touch control(operation from outside)
    Optional: WLAN
    Configuration via local display and operating tools possible

  • Outputs

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Inputs

    Status input
    4-20 mA input

  • Digital communication

    HART, Modbus RS485

  • Power supply

    DC 24 V

    AC 100 to 230 V

    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Hazardous area approvals

    ATEX, FM/CSA, UK Ex

  • Other approvals and certificates

    Other approvals and certificates

  • Product safety

    CE, C-tick

  • Functional safety

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Metrological approvals and certificates

    Flowmeter verification for DN15, 25, 40, 50 & 100
    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

  • Marine approvals and certificates

    Marine certificate

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 31
    • Nr 31 Order code 71510202

      Kit power supply, 100-230VAC, Ex

      Usage: Prosonic Flow 500, transmitter housing, electronic compartment.

    • Nr 31 Order code 71510204

      Kit power supply, 24VDC, Ex

      Usage: Prosonic Flow 500, transmitter housing, electronic compartment.

    • Nr 31 Order code 71510205

      Kit pow.supply,100-230VAC/24VDC, Non-haz

      Usage: Prosonic Flow 500, Non-haz, Zone 2, transmitter housing, electronic compartment.

  • 33
    • Nr 33 Order code XPD0090-

      ISEM, Prosonic Flow P 500, nEx/Z2

      Usage: Valid for approvals acc. feature 010. Consists of: ISEM (sensor electronic module) V304-02. Usage: Valid for approvals acc. feature 010. Consists of: ISEM (sensor electronic module) V304-02.

  • 39
  • 33
    • Nr 33 Order code XPD0091-

      ISEM, Prosonic Flow P 500, Ex

      Usage: Valid for approvals acc. feature 010. Consists of: ISEM (sensor electronic module) V304-01. Usage: Valid for approvals acc. feature 010. Consists of: ISEM (sensor electronic module) V304-01.

  • 37
    • Nr 37 Order code 71323010

      Kit module cartridge, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 34
  • 37
    • Nr 37 Order code 71323011

      Kit module cartridge, 300/500, Non-haz

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 46
    • Nr 46 Order code 71459751

      Kit ISEM ribbon cable, 300/500

      Usage: Prosonic Flow 300/500, transmitter housing.

  • 35
    • Nr 35 Order code XPD0038-

      I/O module, slot 2/3/4, 300/500

      Usage: Proline 300/500

  • 45
    • Nr 45 Order code 71323073

      Kit conn.terminal option A,300/500,N-haz

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

  • 50
    • Nr 50 Order code XPD0031-

      Display module, 300/500/DKX001

      Usage: Proline 300/500, DKX001.

  • 45
    • Nr 45 Order code 71327818

      Kit conn.terminal option C,300/500,N-haz

      Usage: transmitter housing Alu/hygienic, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323075

      Kit conn.terminal option A, 300/500, Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71327819

      Kit conn.terminal option C, 300/500, Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

  • 20
    • Nr 20 Order code 71323016

      Kit cover, sight glass, Alu,Non-haz/Exde

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Promag/Promass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      Kit cover,glass, Alu, -50oC,Non-haz/Exde

      Usage: Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Non-haz. Promass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323020

      Kit cover, sight glass, Alu, Exd

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      Kit cover, sight glass, Alu, -50oC, Exd

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323024

      Kit cover, sight glass, cast, Ex

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover sight glass, cast, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323025

      Kit cover, sight glass, cast, -50oC, Ex

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover sight glass cast, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      Kit cover gasket, sight glass/blind

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      Kit cover gasket,sight glass/blind,-50oC

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323028

      Kit cover, electr.compart., Alu, Non-haz

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 HNBR.

    • Nr 22 Order code 71323029

      Kit cover,electronic, Alu,- 50oC,Non-haz

      Usage: Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323030

      Kit cover gasket,electr.compart.,Non-haz

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: 10x O-Ring 117,1x3,53 HNBR.

    • Nr 74 Order code 71323031

      Kit cover gasket,electr., -50oC, Non-haz

      Usage: Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      Kit cover, electronic compart., Alu, Ex

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      Kit cover, electr.compart., Alu,-50oC,Ex

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 22 Order code 71323034

      Kit cover, electronic compart., cast, Ex

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323035

      Kit cover, electr.compart.,cast,-50oC,Ex

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      Kit cover gasket, electronic compart.,Ex

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      Kit cover gasket,elect.compart.,-50oC,Ex

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 23
    • Nr 23 Order code 71323038

      Kit cover, wall mount, Alu, Ex

      Usage: Promag 10, Promag/Promass/Prosonic Flow 500, wall mount transmitter Alu, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323039

      Kit cover, wall mount, Alu, -50oC, Ex

      Usage: Promag/Promass/Prosonic Flow 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

    • Nr 23 Order code 71323040

      Kit cover, wall mount, cast, Ex

      Usage: Promag/Promass/Prosonic Flow 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323041

      Kit cover, wall mount, cast, -50oC, Ex

      Usage: Promag/Promass/Prosonic Flow 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 75
    • Nr 75 Order code 71323042

      Kit cover gasket, wall mount, Ex

      Usage: Promag 10, Promag/Promass/Prosonic Flow 500, wall mount transmitter Alu/cast, connection compartment. Consists of: 10x O-Ring 88,50x3,53 HNBR.

    • Nr 75 Order code 71323043

      Kit cover gasket, wall mount, -50oC, Ex

      Usage: Promag/Promass/Prosonic Flow 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 71
    • Nr 71 Order code 71323071

      Kit interface gaskets, 300/500

      Usage: Promass/Prosonic Flow/t-mass 300, Promass/Prosonic Flow 500, transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface.

    • Nr 71 Order code 71323072

      Kit interface gaskets, 300/500, -50oC

      Usage: Promass/Prosonic Flow/t-mass 300, Promass/Prosonic Flow 500, transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

  • 11
    • Nr 11 Order code 71368488

      Kit protect.cover option A,300/500,N-haz

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323081

      Kit protective cover option A,300/500,Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 87
    • Nr 87 Order code 71343505

      Kit weather protection cover, 300/500

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing. Consists of: weather protection cover 4404, installation material.

    • Order code 71346428

      Pipe Mounting kit,Transmitter 10/500

    • Order code 71351317

      Kit wireless antenna extended range

      Consists of: Connection cable in the transmitter, Ex cable entry for antenna, 1.5m cable, antenna, angle with union nut.

    • Order code 9X5BXX-

      Transmitter Prosonic Flow 500, 9X5BXX

      With an integrated web server.

    • Order code DK9013-

      Sensor set, Prosonic Flow 500

      Usage: Prosonic Flow P 500, 9P5B

    • Order code DK9014-

      Sensor holder set, Prosonic Flow 400/500

      Usage: Prosonic Flow P 500, 9P5B Prosonic Flow W 400, 9W4B Prosonic Flow I 400, 9I4B

    • Order code DK9015-

      Install. set, Prosonic Flow 500/W 400

      Usage: Prosonic Flow P 500, 9P5B Prosonic Flow W 400, 9W4B

    • Order code DK9012-

      Sensor cable set, Prosonic Flow 500

      Connection Cable between Sensor Junction Housing and Transmitter for Remote Devices of Proline 500.

    • Order code DK9003-

      Conduit adapter set, Prosonic Flow

      Usage: Prosonic Flow P 500, 9P5B Prosonic Flow W 400, 9W4B Prosonic Flow I 400, 9I4B

    • Order code DK9CM-

      Coupling medium, Prosonic Flow

      Usage: Prosonic Flow 91W/93W/93P P 500, W 400

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

Downloads
